射频同轴电缆技术规格书
Technical Specification Sheet of RF Coaxial Cable
Model Number / 电缆型号：SFF-50-7-1
Material Code / 物料编码：02.07.02.60011

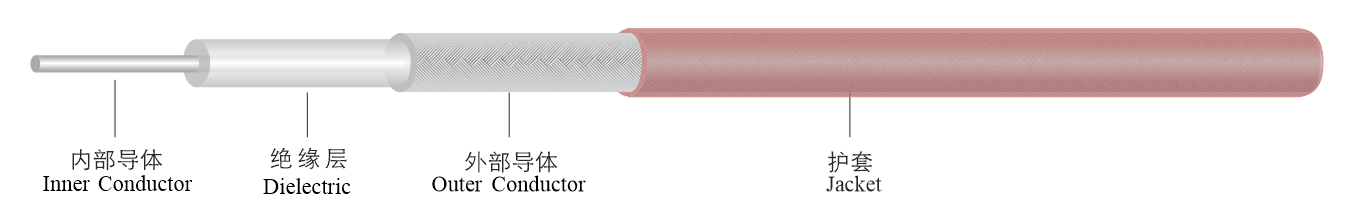

表1 结构尺寸/Structure Parameter
Construction Specification/结构尺寸 |
Item/项目 | Material/材料及工艺 | Diameter/直径(mm) |
1. Inner Conductor/内部导体 | Silver-Plated Copper/镀银铜 | 7 / 0.82 |
2. Dielectric/绝缘层 | PTFE/聚四氟乙烯 | 7.24±0.20 |
3. Outer Conductor/外部导体 | Silver-Plated Copper Wire Braiding/镀银铜丝编织 | 7.90±0.20 |
4. Jacket/护套 | FEP/聚全氟乙丙烯/Brown/棕色 | 9.20±0.30 |
表2 电气性能/Electrical Data
Electrical Characteristics/电气性能 |
Items/项目 | Data/指标 |
Capacitance/电容 (pF/m) | 94 |
Impedance/阻抗 (ohm) | 50±2 |
Velocity of Propagation/速率 (%) | 70 |
Max. Operating Frequency/最大频率(GHz) | 3 |
Time Delay/延时 (ns/m) | 4.7 |
Voltage Withstand (AC)/耐电压 (kVrms) | 7.5 (1 min) |
Shielding Effectiveness/屏蔽性 (dB) | 60 |
表3 机械和环境性能/Mechanical Data
Mechanical and Environmental Characteristics/机械和环境性能 |
Items/项目 | Data/指标 |
Min. Bending Radius Static/最小弯曲半径, 单次 (mm) | 60 |
RoHS/环保 | Compliant/合规 |
Operating Temp./工作温度 (℃) | -55~200 |
Weight/重量 (kg/km) | 256（参考） |
表4 衰减及功率容量/Attenuation and Power
Attenuation @ 20℃ and Sea Level, Power /衰减，20℃；功率容量，海平面 |
Frequency (MHz)/频点 | Attenuation (dB/m)/衰减 | Power (Watts CW)/功率容量 |
30 | 0.044 | 6300 |
200 | 0.13 | 2400 |
400 | 0.18 | 1820 |
3000 | 0.52 | 560 |
射频同轴电缆技术规格书
Technical Specification Sheet of RF Coaxial Cable
Model Number / 电缆型号：SFF-50-7-1
Material Code / 物料编码：02.07.02.60011
表1 结构尺寸/Structure Parameter
Construction Specification/结构尺寸 |
Item/项目 | Material/材料及工艺 | Diameter/直径(mm) |
1. Inner Conductor/内部导体 | Silver-Plated Copper/镀银铜 | 7 / 0.82 |
2. Dielectric/绝缘层 | PTFE/聚四氟乙烯 | 7.24±0.20 |
3. Outer Conductor/外部导体 | Silver-Plated Copper Wire Braiding/镀银铜丝编织 | 7.90±0.20 |
4. Jacket/护套 | FEP/聚全氟乙丙烯/Brown/棕色 | 9.20±0.30 |
表2 电气性能/Electrical Data
Electrical Characteristics/电气性能 |
Items/项目 | Data/指标 |
Capacitance/电容 (pF/m) | 94 |
Impedance/阻抗 (ohm) | 50±2 |
Velocity of Propagation/速率 (%) | 70 |
Max. Operating Frequency/最大频率(GHz) | 3 |
Time Delay/延时 (ns/m) | 4.7 |
Voltage Withstand (AC)/耐电压 (kVrms) | 7.5 (1 min) |
Shielding Effectiveness/屏蔽性 (dB) | 60 |
表3 机械和环境性能/Mechanical Data
Mechanical and Environmental Characteristics/机械和环境性能 |
Items/项目 | Data/指标 |
Min. Bending Radius Static/最小弯曲半径, 单次 (mm) | 60 |
RoHS/环保 | Compliant/合规 |
Operating Temp./工作温度 (℃) | -55~200 |
Weight/重量 (kg/km) | 256（参考） |
表4 衰减及功率容量/Attenuation and Power
Attenuation @ 20℃ and Sea Level, Power /衰减，20℃；功率容量，海平面 |
Frequency (MHz)/频点 | Attenuation (dB/m)/衰减 | Power (Watts CW)/功率容量 |
30 | 0.044 | 6300 |
200 | 0.13 | 2400 |
400 | 0.18 | 1820 |
3000 | 0.52 | 560 |
