射频同轴电缆技术规格书
Technical Specification Sheet of RF Coaxial Cable
Model Number / 电缆型号：KTRCYZBU-120-50 (LA)
Material Code / 物料编号：02.09.01.20001

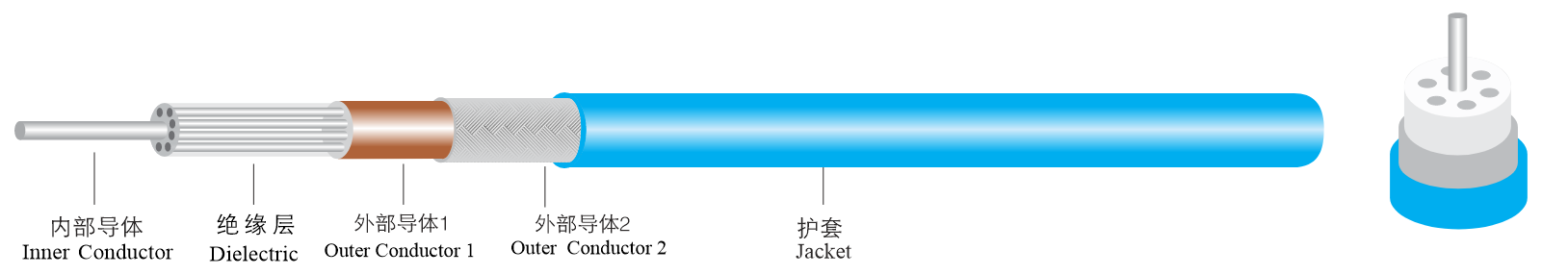

表1 结构尺寸/Structure Parameter
Construction Specification/结构尺寸 |
Item/项目 | Material/材料及工艺 | Diameter/直径(mm) |
1. Inner Conductor/内部导体 | Silver-Plated Copper/镀银铜 | 0.81±0.01 |
2. Dielectric/绝缘层 | Profiled PTFE/藕心推挤PTFE | 2.31±0.05 |
3. Outer Conductor 1/外部导体1 | Copper Foil/铜箔 | 2.36±0.05 |
4. Outer Conductor 2/外部导体2 | Tin-Plated Copper Braided Wire & Tin Soaked/镀锡铜丝编织后浸锡 | 2.90±0.10 |
5. Jacket/护套 | LSZH/低烟无卤阻燃聚烯烃 | 3.60±0.10 |
备注：护套外径与颜色由订货方定
Note: The jacket outer diameter and color shall be specified by the purchaser.
表2 电气性能/Electrical Data
Electrical Characteristics/电气性能 |
Items/项目 | Data/指标 |
Capacitance/电容 (pF/m) | 87 |
Impedance/阻抗 (ohm) | 50±2 |
Velocity of Propagation/速率 (%) （200MHz） | 77±0.5 |
Operating Frequency/工作频率(GHz) | 0~6 |
Time Delay/延时 (ns/m) | 4.34 |
Voltage Withstand (AC)/耐电压 (kVrms) | 2.25(1 min) |
Shielding Effectiveness/屏蔽性 (dB) | >100 (0-4G) |
*备注：根据国军标测试方法,速率测试在频率为200MHz上测试。
Note: According to the GJB test method, the velocity test is performed at a frequency of 200 MHz.
表3 机械和环境性能/Mechanical Data
Mechanical and Environmental Characteristics/机械和环境性能 |
Items/项目 | Data/指标 |
Min. Bending Radius Static/最小弯曲半径, 单次 (mm) | 10 |
RoHS/环保 | Compliant/合规 |
Operating Temp./工作温度 (℃) | -30~90 |
Weight/重量 (kg/km) | / |
表4 衰减及功率容量/Attenuation and Power
Attenuation @ 20℃ and Sea Level, Power/衰减; 功率容量 (20℃, 海平面) |
Frequency (GHz)/频点 | Attenuation (dB/m)/衰减 | Power (Watts CW)/功率容量 |
1.0 | 0.460 | 145 |
1.8 | 0.630 | 110 |
2.0 | 0.660 | 105 |
2.6 | 0.760 | 90 |
3.8 | 0.930 | 75 |
6.0 | 1.200 | 60 |
