射频同轴电缆技术规格书
Technical Specification Sheet of RF Coaxial Cable
Model Number / 电缆型号：KTRCYZBU-176-50 (LA)
Material Code / 物料编码：02.09.01.60003

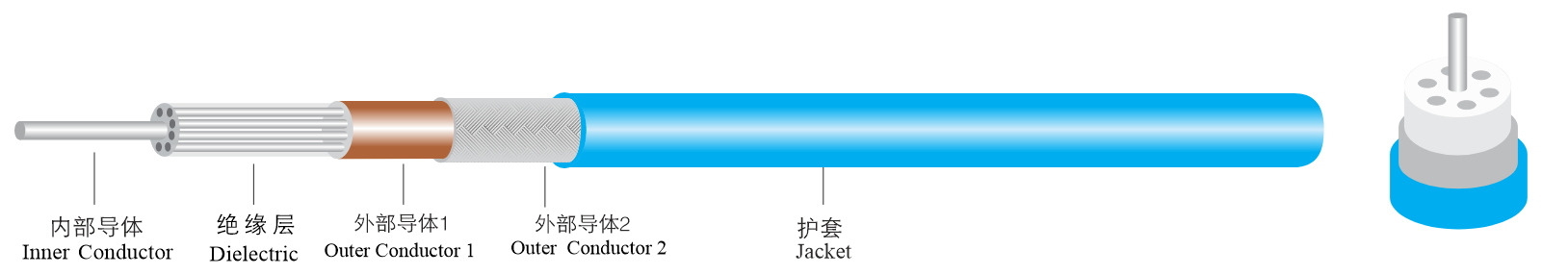

表1 结构尺寸/Structure Parameter
Construction Specification/结构尺寸 |
Item/项目 | Material/材料及工艺 | Diameter/直径(mm) |
1. Inner Conductor/内部导体 | Silver-Plated Copper/镀银铜 | 1.376±0.01 |
2. Dielectric/绝缘层 | Profiled PTFE/藕心推挤PTFE | 3.85±0.10 |
3. Outer Conductor 1/外部导体1 | Copper Foil/铜箔 | 3.92±0.10 |
4. Outer Conductor 2/外部导体2 | Tin-Plated Copper Braided Wire & Tin Soaked/镀锡铜丝编织后浸锡 | 4.48±0.15 |
5. Jacket/护套 | LSZH/蓝色 印字印字内容：厂家+型号+生产日期+米标（例;kansai 176-50LA 2024/6/29 XXXXX)/低烟无卤阻燃聚烯烃 | 5.40±0.20 |
表2 电气性能/Electrical Data
Electrical Characteristics/电气性能 |
Items/项目 | Data/指标 |
Capacitance/电容 (pF/m) | 83±4 |
Impedance/阻抗 (ohm) | 50±2 |
Velocity of Propagation/速率 (%) （200MHz） | 80 |
Max. Operating Frequency/工作频率 (GHz) | 0~6 |
Time Delay/延时 (ns/m) | 4.16 |
Voltage Withstand (DC)/耐电压 (kVrms) | 3 (1 min) |
Shielding Effectiveness/屏蔽性 (dB) | >100 |
Phase Difference/相位差（△L=480mm±0.1 mm@2 GHz） | 1440°±8° |
*备注：根据国军标测试方法,速率测试在频率为200MHz上测试。
Note: According to the GJB test method, the velocity test is performed at a frequency of 200 MHz.
表3 机械和环境性能/Mechanical Data
Mechanical and Environmental Characteristics/机械和环境性能 |
Items/项目 | Data/指标 |
Min. Bending Radius Static/最小弯曲半径, 单次 (mm) | 20 |
RoHS/环保 | Compliant/合规 |
Operating Temp./工作温度 (℃) | -40~90 |
表4 衰减及功率容量/Attenuation and Power
Attenuation @ 20℃ and Sea Level, Power/衰减、功率容量 （20℃、40℃, 海平面) |
Frequency (GHz)/频点 | Attenuation (dB/m)/衰减 | Power (Watts CW)/功率容量 |
0.45 | 0.18 | 791 |
1.0 | 0.26 | 475 |
2.0 | 0.38 | 320 |
3.0 | 0.48 | 275 |
4.0 | 0.60 | 227 |
5.0 | 0.67 | 203 |
6.0 | 0.76 | 194 |
