射频同轴电缆技术规格书
Technical Specification Sheet of RF Coaxial Cable
Model Number / 电缆型号：KTCRA-810-50
Material Code / 物料编码：02.14.01.80012

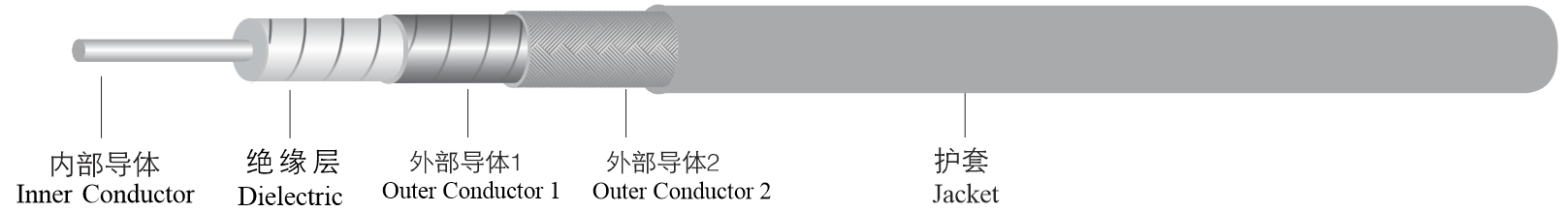

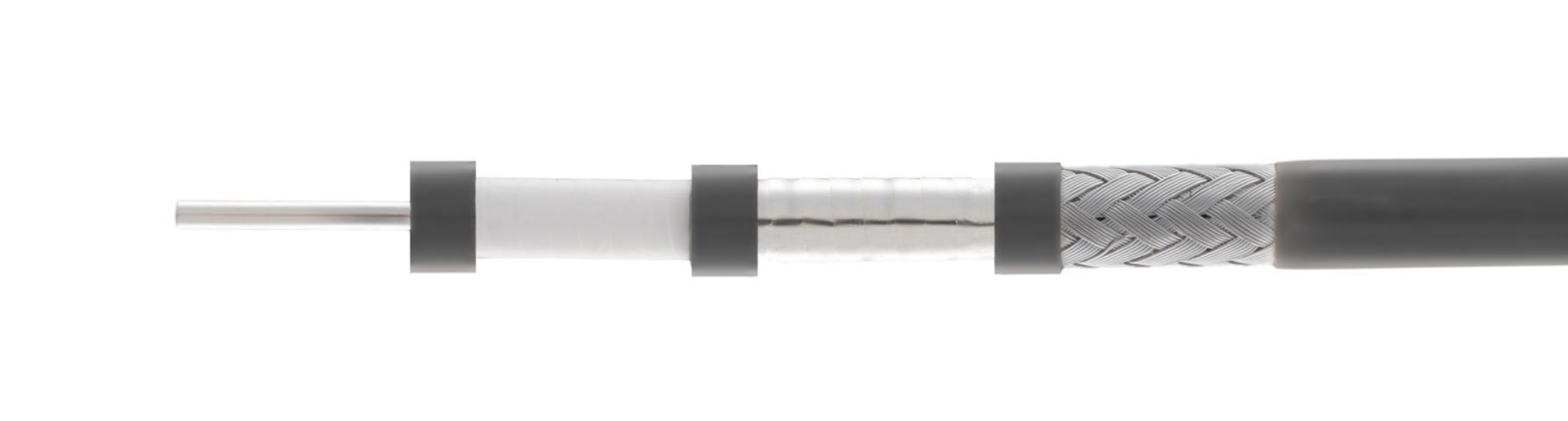

表1 结构尺寸/Structure Parameter
Construction Specification/结构尺寸 |
Item/项目 | Material/材料及工艺 | Diameter/直径(mm) |
1. Inner Conductor/内部导体 | Silver-Plated Copper/镀银铜 | 2.40±0.02 |
2. Dielectric/绝缘层 | LD-PTFE绕包/低密度聚四氟乙烯 | 6.40±0.05 |
3. Outer Conductor 1/外部导体1 | Spiral Wrapped Silver-Plated Copper Braiding/ 镀银铜带绕包 | 6.64±0.05 |
4. Outer Conductor 2/外部导体2 | Silver-Plated Copper Wire Braiding/镀银铜线编织 | 7.10±0.10 |
5. Jacket/护套 | FEP/聚全氟乙丙烯/Grey/灰色 | 8.10±0.15 |
表2 电气性能/Electrical Data
Electrical Characteristics/电气性能 |
Items/项目 | Data/指标 |
Capacitance/电容 (pF/m) | 80 |
Impedance/阻抗 (ohm) | 50±2 |
Velocity of Propagation/速率 (%) | 83 |
Time Delay/延时 (ns/m) | 4.02 |
Max. Operating Frequency/工作频率 (GHz) | 18 |
Voltage Withstand (DC)/耐电压 (kV) | 3.5 |
Shielding Effectiveness/屏蔽性 (dB) | >90 |
Phase Change VS Bending /机械相位稳定性 (Ghz) | ±0.3 |
Phase Change VS Temperature/相位随温度变化@-45~+85℃ | ≤750 PPM |
表3 机械和环境性能/Mechanical Data
Mechanical and Environmental Characteristics/机械和环境性能 |
Items/项目 | Data/指标 |
Min. Bending Radius Static/最小弯曲半径, 单次 (mm) | 40 |
RoHS/环保 | Compliant/合规 |
Operating Temp./工作温度 (℃) | -55~165 |
Weight/重量 (kg/km) | 136g/m |
表4 衰减及功率容量/Attenuation and Power
Attenuation @ 20℃ and Sea Level, Power /衰减，20℃；功率容量，海平面 |
Frequency (GHz)/频点 | Attenuation (dB/m)/衰减 | Power (Watts CW)/功率容量 |
0.3 | 0.077 | 3314 |
1.7 | 0.186 | 1376 |
2 | 0.202 | 1267 |
3 | 0.248 | 1029 |
6 | 0.355 | 720 |
8 | 0.412 | 620 |
9 | 0.438 | 583 |
12 | 0.51 | 501 |
16 | 0.593 | 431 |
18 | 0.631 | 405 |
