射频同轴电缆技术规格书
Technical Specification Sheet of RF Coaxial Cable
Model Number / 电缆型号：KTG-141-71
Material Code / 物料编码：02.05.04.10007

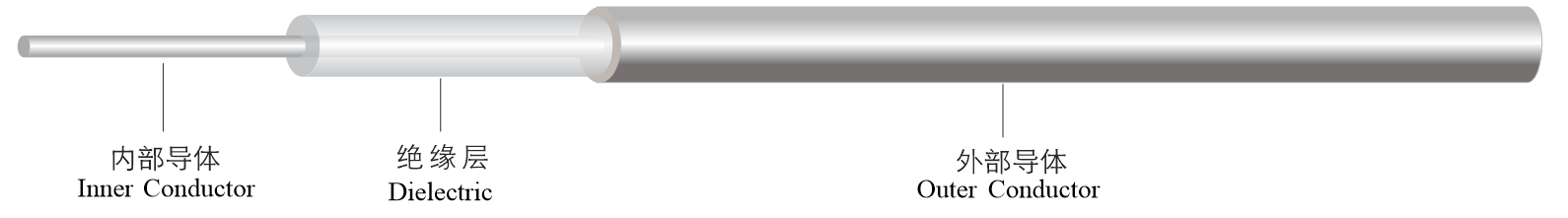

表1 结构尺寸/Structure Parameter
Construction Specification/结构尺寸 |
Item/项目 | Material/材料及工艺 | Diameter/直径(mm) |
1. Inner Conductor/内部导体 | Silver-Plated Copper/镀银铜 | 0.57±0.01 |
2. Dielectric/绝缘层 | PTFE/聚四氟乙烯 | 2.995±0.05 |
3. Outer Conductor/外部导体 | Tin-Plated Copper Tube/镀锡无缝退火紫铜管 | 3.58±0.05 |
表2 电气性能/Electrical Data
Electrical Characteristics/电气性能 |
Items/项目 | Data/指标 |
Capacitance/电容 (pF/m) | 98 |
Impedance/阻抗 (ohm) | 71±2 |
Velocity of Propagation/速率 (%) | 70 |
Max. Operating Frequency/工作频率 (GHz) | 0~20 |
Time Delay/延时 (ns/m) | 4.7 |
Voltage Withstand (AC)/耐电压 (kVrms) | 2 (1 min) |
Shielding Effectiveness/屏蔽性 (dB) | >110 (0-1G) |
表3 机械和环境性能/Mechanical Data
Mechanical and Environmental Characteristics/机械和环境性能 |
Items/项目 | Data/指标 |
Min. Bending Radius Static/最小弯曲半径, 单次 (mm) | 15 |
RoHS/环保 | Compliant/合规 |
Operating Temp./工作温度 (℃) | -55~125 |
Weight/重量 (kg/km) | / |
表4 衰减及功率容量/Attenuation and Power
Attenuation @ 20℃ and Sea Level, Power /衰减，20℃；功率容量，海平面 |
Frequency (GHz)/频点 | Attenuation (dB/m)/衰减 | Power (Watts CW)/功率容量 |
0.5 | 0.26 | 483.5 |
1.0 | 0.38 | 336.2 |
5.0 | 0.91 | 140.4 |
10.0 | 1.37 | 94.6 |
20.0 | 2.09 | 62.7 |
