射频同轴电缆技术规格书
Technical Specification Sheet of RF Coaxial Cable
Cable Code / 电缆型号：KTRYZBU-110-50
Material Code / 物料编码：02.20.04.10014
表1 结构尺寸/Structure Parameter
Construction Specification/结构尺寸 |

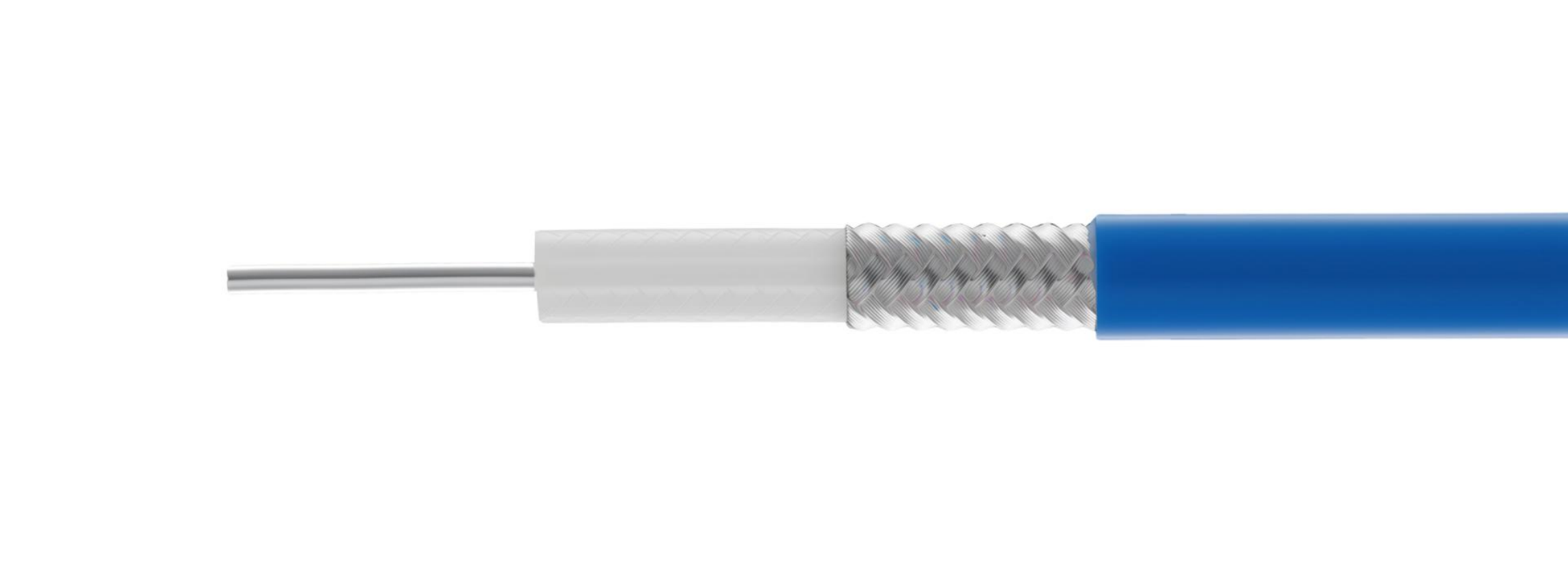

Item/项目 | Material/材料及工艺 | Diameter/直径(mm) |
1. Inner Conductor/内部导体 | Silver-Plated Copper/镀银铜 | 0.715±0.01 |
2. Dielectric/绝缘层 | PTFE/聚四氟乙烯 | 2.20±0.05 |
3. Outer Conductor/外部导体 | Tin-Plated Copper Braided Wire & Tin Soaked/镀锡铜丝编织后浸锡 | 2.65±0.05 |
4. Jacket/护套 | LSZH/低烟无卤阻燃聚烯烃/Blue/Unprinted/蓝色无印字 | 3.30±0.10 |
表2 电气性能/Electrical Data
Electrical Characteristics/电气性能 |
Items/项目 | Data/指标 |
Capacitance/电容 (pF/m) | 98 |
Impedance/阻抗 (ohm) | 50 |
Velocity of Propagation/速率 (%) | 70.8 |
Max. Operating Frequency/截止频率 (GHz) | 0～6 |
Time Delay/延时 (ns/m) | 4.7 |
Voltage Withstand (AC)/耐电压 (kVrms) | 1.5 (1 min) |
Shielding Effectiveness/屏蔽性 (dB) | ＞100 (0-1G) |
表3 机械和环境性能/Mechanical Data
Mechanical and Environmental Characteristics/机械和环境性能 |
Items/项目 | Data/指标 |
Min. Bending Radius Static/最小弯曲半径, 单次 (mm) | 7 |
RoHS/环保 | Compliant/合规 |
Operating Temp./工作温度 (℃) | -30~90 |
Weight/重量 (kg/km) | / |
表4 衰减及功率容量/Attenuation and Power
Attenuation @ 20°C and Sea Level /衰减;功率容量 (20°C, 海平面) |
Frequency (GHz)/频点 | Attenuation (dB/m)/衰减 | Power (Watts CW)/功率容量 |
0.5 | 0.39 | 170 |
1.0 | 0.50 | 133 |
1.8 | 0.69 | 96 |
2.0 | 0.74 | 89 |
3.0 | 0.92 | 72 |
5.0 | 1.23 | 54 |
6.0 | 1.36 | 48 |
