射频同轴电缆技术规格书
Technical Specification Sheet of RF Coaxial Cable
Model Number / 电缆型号：KTRYZR-141-50
Material Code / 物料编码：02.06.01.10059

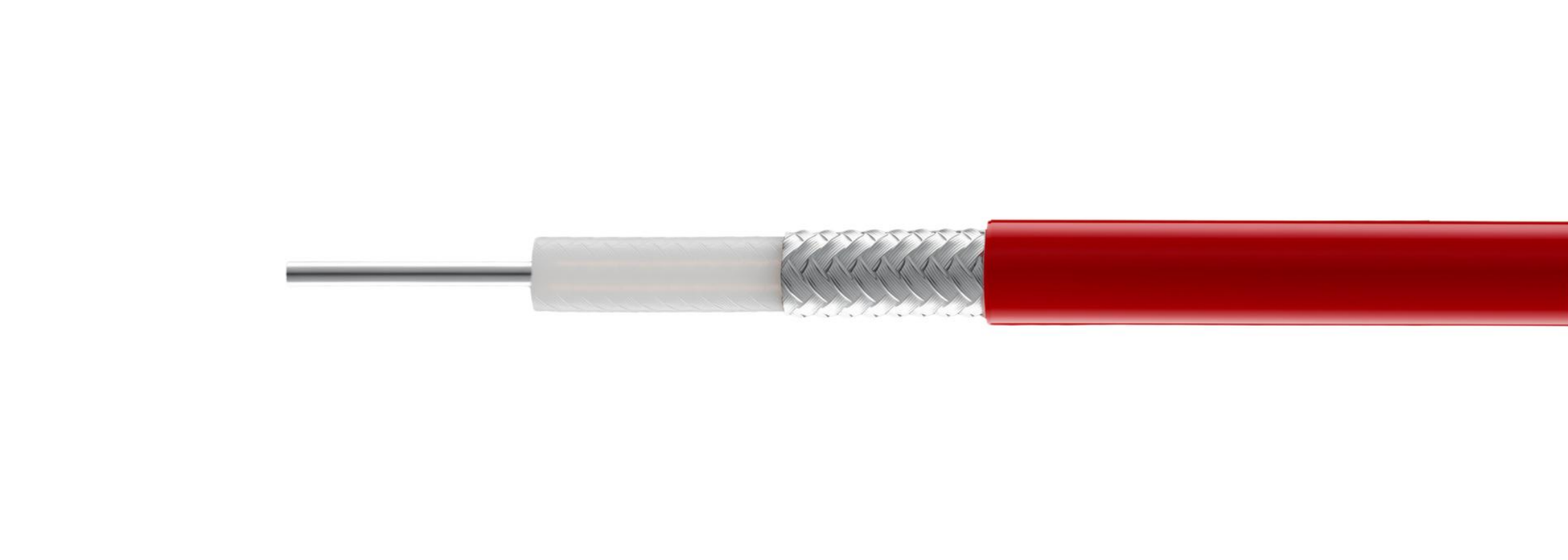

表1 结构尺寸/Structure Parameter
Construction Specification/结构尺寸 |
Item/项目 | Material/材料及工艺 | Diameter/直径(mm) |
1. Inner Conductor/内部导体 | Silver-Plated Copper/镀银铜 | 0.925±0.01 |
2. Dielectric/绝缘层 | PTFE/聚四氟乙烯 | 2.95±0.05 |
3. Outer Conductor/外部导体 | Tin-Plated Copper Braided Wire & Tin Soaked/镀锡铜丝编织后浸锡 | 3.50±0.10 |
4. Jacket/护套 | LSZH/低烟无卤阻燃聚烯烃/Red/红色 | 4.50±0.10 |
表2电气性能/Electrical Data
Electrical Characteristics/电气性能 |
Items/项目 | Data/指标 |
Capacitance/电容 (pF/m) | 98 |
Impedance/阻抗 (ohm) | 50±2 |
Velocity of Propagation/速率 (%) (200MHz) | 70.8 |
Max. Operating Frequency/截止频率(GHz) | 34 |
Time Delay/延时 (ns/m) | 4.7 |
Voltage Withstand AC/耐电压 (kVrms) | 3 (1min) |
Insulation Resistance. Nominal/绝缘电阻 (MΩ·km) | 5000 |
Shielding Effectiveness/屏蔽性(up to18GHZ) | 100dB |
*备注：根据国军标测试方法，速率测试在频率为200MHz上测试。
Note: According to the GJB test method, the Velocity of Propagation test is performed at a frequency of 200 MHz.
表3 机械和环境性能/Mechanical Data
Mechanical and Environmental Characteristics/机械和环境性能 |
Items/项目 | Data/指标 |
Min. Bending Radius Static/最小弯曲半径，单次 (mm) | 8 |
RoHS/环保 | Compliant/合规 |
Operating Temp./工作温度 (℃) | -20～90 |
Weight/重量 (kg/km) | 45.5(参考) |
表4 衰减及功率容量/Attenuation and Power
Attenuation @ 20℃ and Sea Level, Power /衰减，20℃；功率容量，海平面 |
Frequency (GHz)/频点 | Attenuation (dB/m)/衰减 | Power (Watts CW)/功率 |
0.8 | 0.37 | 208 |
1 | 0.41 | 187 |
2 | 0.61 | 116 |
3 | 0.78 | 95 |
3.8 | 0.88 | 87 |
6 | 1.15 | 67 |
